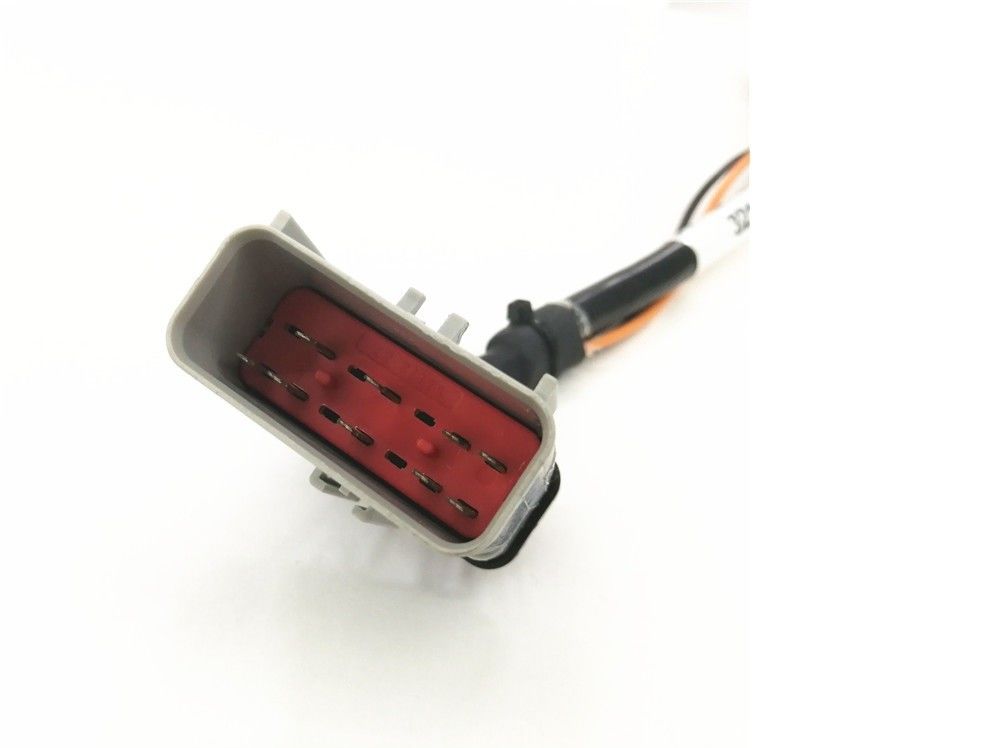

Fci 2.80mm 14Pos Waterproof Delphi PA66 Automotive Wire harness customized cable assemblies

Product Details

Place of Origin: Made in China

Brand Name: FCI Apex 2.80mm 14 pos

Certification: IATF16949

Model Number: 54201400 54201401 54201402 54201403 54201404 54201405 14Pin

Payment & Shipping Terms

Minimum Order Quantity: 5000

Price: 19.99 usd / pcs

Packaging Details: PE bag , cartons

Delivery Time: 25-35 days

Payment Terms: L/C, D/P, T/T

Supply Ability: 10000 K pcs Per month

Get Best Price
Product Details
Highlight:
Connector:
14 Pos 54201400
Material:
Nylon PA66 94V0
Color:
Black Or Gray
Length:
101mm Customized
Service:
2.80mm Waterproof
Sample:
Free
Pitch:
2.80mm
Item:
Delphi
Application:
Sensor Cable
Product Name:
Waterproof Connector
Connector:
14 Pos 54201400
Material:
Nylon PA66 94V0
Color:
Black Or Gray
Length:
101mm Customized
Service:
2.80mm Waterproof
Sample:
Free
Pitch:
2.80mm
Item:
Delphi
Application:
Sensor Cable
Product Name:
Waterproof Connector
Product Description

Edgarwireharness supply Automotive waterproof sealed Delphi FCI APEX2.8 series 14 way 54201416 connector with customized wire harness & Cable assembly

PRODUCT DETAILS

Cable Type Plastic Injection Parts
Color Red/Black/Orange/Purple/Green/or optional
Length 100mm 500mm or customized
Connector 1 FCI Apex 2.8mm
Connector 2 Molex / JST manufacturer
RoHS compliant Yes, materials selection strictly complies with UL standards.
Can accept other
harnesses customized ?
Yes, customized accepted, just feel free to let us know your requirement by sending your drawings or pictures.
More Information Before the mass production, 2-7 working days to confirm the sample
  • custom cable assemblies
  • electrical wire harness for Customoizd
  • Instrument panel and cockpit connectors Coupling connectors
  • Apex 2/3/4/6/10/14 way coupling housings for 2.8 mm terminals• 2-3-4-6-10 and 14 position housings
  • available• Single row 5.25 mm pitch for2-3-4 position housings
  • Double row 5.25 x 6.40 mm pitchfor 6-10 and 14 position housings
  • Terminal position assurance (T.P.A.)
  • Connector position assurance(C.P.A.)
  • Fixing clip available• Mechanical polarization
  • Several colour codings availableFeatures4
  • 50 Performance characteristics•
  • Temperature range:from -40°C to +125°C
  • Contact retention force: > 90 N
  • Contact insertion force: < 15 N
  • Connector mating force: < 90 NConstruction
  • Housing material: PAConnector compatibility
  • Usable terminals:- Apex 2.8 mm female terminals- Apex 2.8 mm male terminals
  • Part Numbers No. of position Terminal size Type Colour
  •
  • 54200200 2 2.8 mm Female housing Black
  • 54200201 2 2.8 mm Female housing Light grey
  • 54200202 2 2.8 mm Female housing Dark grey
  • 54200203 2 2.8 mm Female housing Natural
  • 54200204 2 2.8 mm Male housing Black
  • 54200205 2 2.8 mm Male housing Light grey
  • 54200300 3 2.8 mm Female housing Black
  • 54200301 3 2.8 mm Female housing Light grey
  • 54200302 3 2.8 mm Female housing Dark grey
  • 54200303 3 2.8 mm Female housing Natural
  • 54200304 3 2.8 mm Male housing Black
  • 54200305 3 2.8 mm Male housing Light grey
  • 54200306 3 2.8 mm Male housing Dark grey
  • 54200307 3 2.8 mm Male housing Natural
  • 54200400 4 2.8 mm Female housing Black
  • 54200402 4 2.8 mm Female housing Light grey
  • 54200403 4 2.8 mm Female housing Dark grey
  • 54200404 4 2.8 mm Female housing Natural
  • 54200405 4 2.8 mm Male housing Black
  • 54200406 4 2.8 mm Male housing Light grey
  • 54200407 4 2.8 mm Male housing Dark Grey
  • 54200408 4 2.8 mm Male housing Natural
  • 54200600 6 2.8 mm Female housing Black
  • 54200601 6 2.8 mm Female housing Light grey
  • 54200602 6 2.8 mm Female housing Dark grey
  • 54200603 6 2.8 mm Female housing Natural
  • 54200604 6 2.8 mm Male housing Black
  • 54200605 6 2.8 mm Male housing Light grey
  • 54200606 6 2.8 mm Male housing Dark grey
  • 54200607 6 2.8 mm Male housing Natural
  • 54201000 10 2.8 mm Female housing Black
  • 54201001 10 2.8 mm Female housing Light grey
  • 54201002 10 2.8 mm Female housing Light green
  • 54201003 10 2.8 mm Female housing Dark green
  • 54201004 10 2.8 mm Female housing Orange
  • 54201005 10 2.8 mm Female housing Aqua
  • 54201006 10 2.8 mm Male housing Black
  • 54201007 10 2.8 mm Male housing Light grey
  • 54201008 10 2.8 mm Male housing Light green
  • 54201400 14 2.8 mm Female housing Black
  • 54201401 14 2.8 mm Female housing Light grey
  • 54201402 14 2.8 mm Female housing Dark grey
  • 54201403 14 2.8 mm Female housing Natural
  • 54201404 14 2.8 mm Male housing Black
  • 54201405 14 2.8 mm Male housing Light grey
